Connectivity
Connectivity page functions
- Enable/Disable gateway Ethernet/Wi-Fi communication.

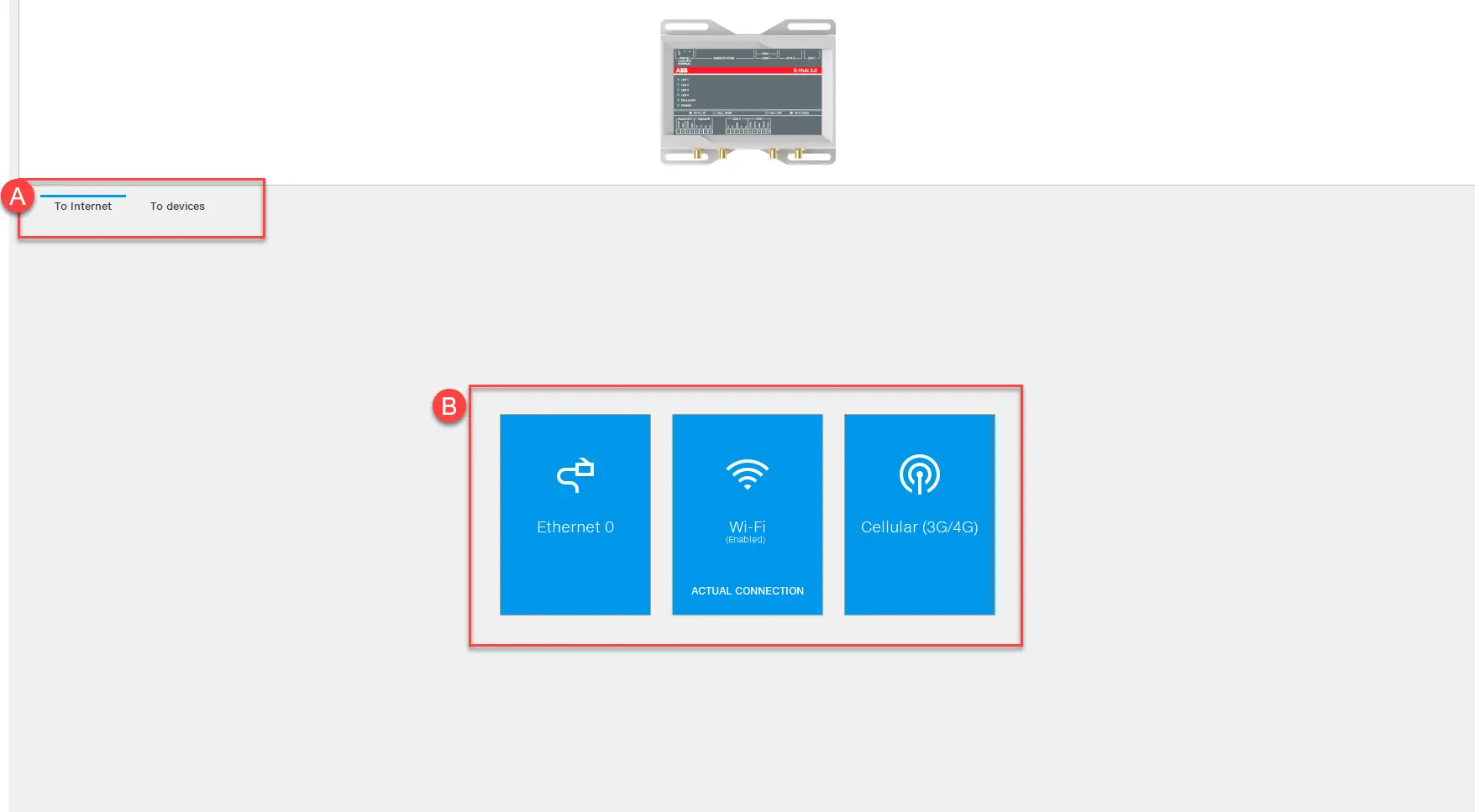

Page To Internet

Part |
Description |
A |
Pages menu |
B |
Internet connection type buttons available |

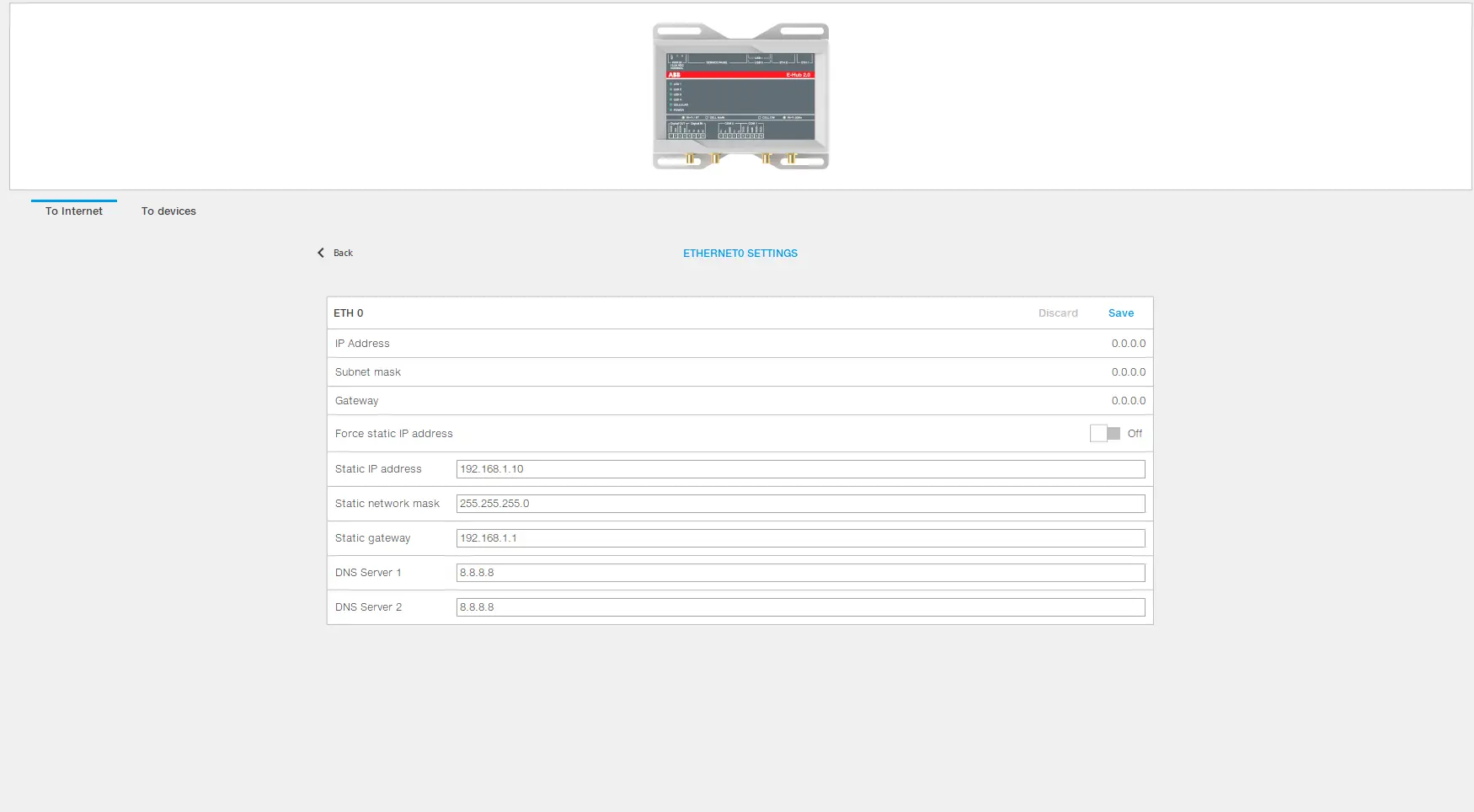

Page To Internet > network

Part
|
Function |
Back |
Returns to the page with the connection type buttons. |
Discard |
Cancels the changes.
|
Save |
Transfers the configuration to the device. |

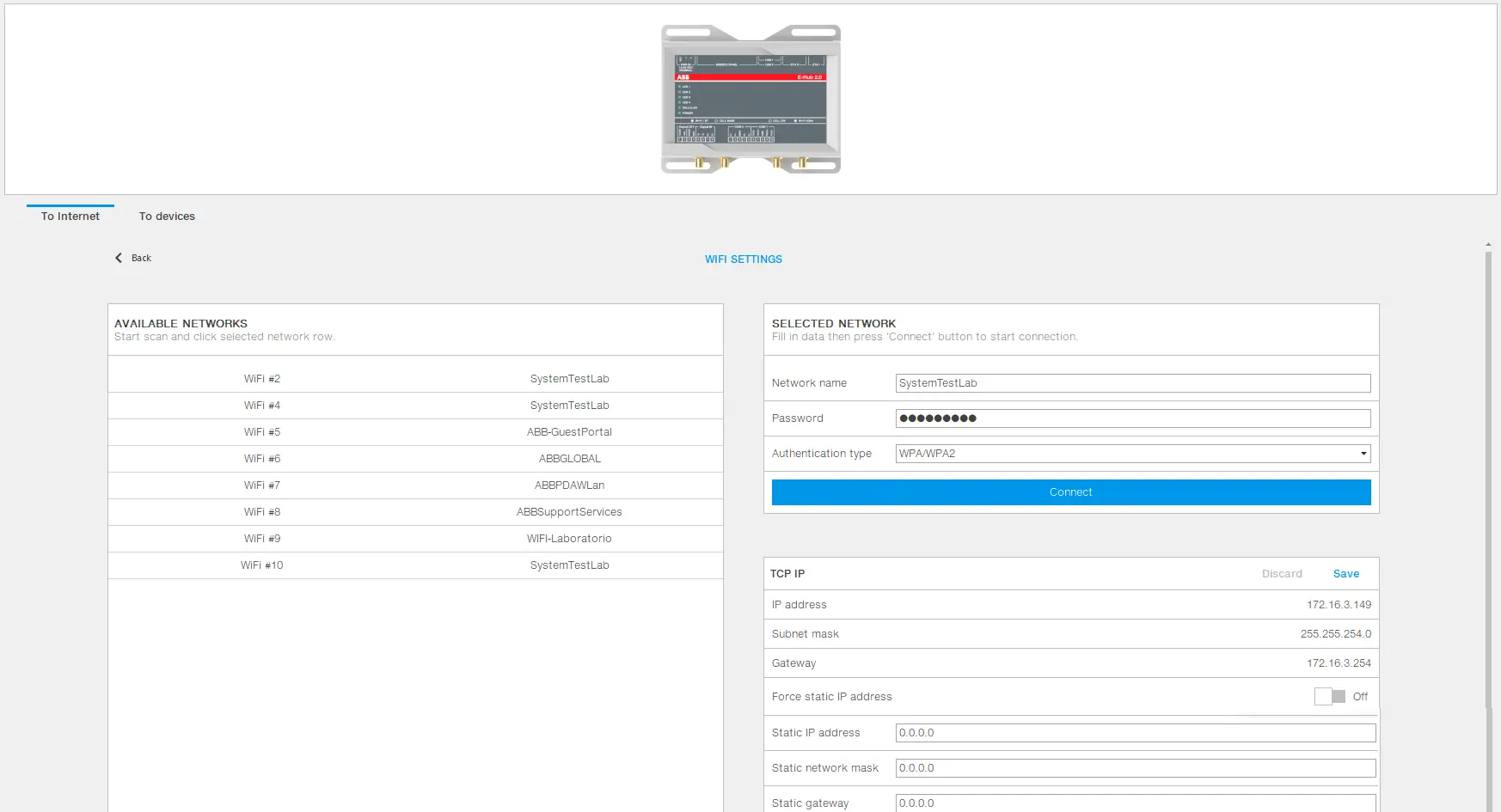

Page To Internet > Wi-Fi

Part |
Function |
Back |
Returns to the page with the connection type buttons. |
Discard |
Cancels the changes. |
Save |
Transfers the configuration to the device. |

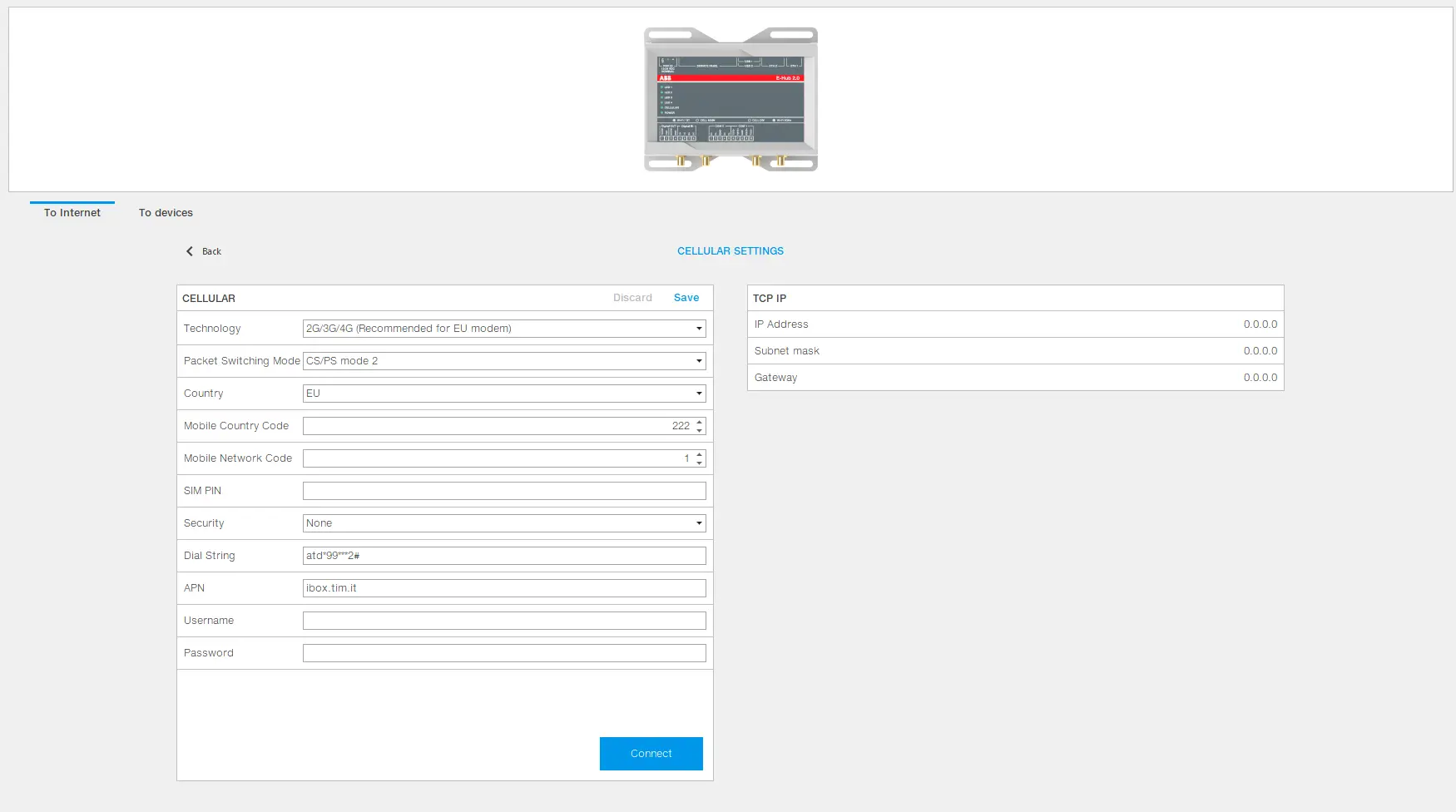

Page To Internet > Cellular
Part |
Function |
Back |
Returns to the page with the connection type buttons. |
Discard |
Cancels the changes. |
Save |
Transfers the configuration to the device. |

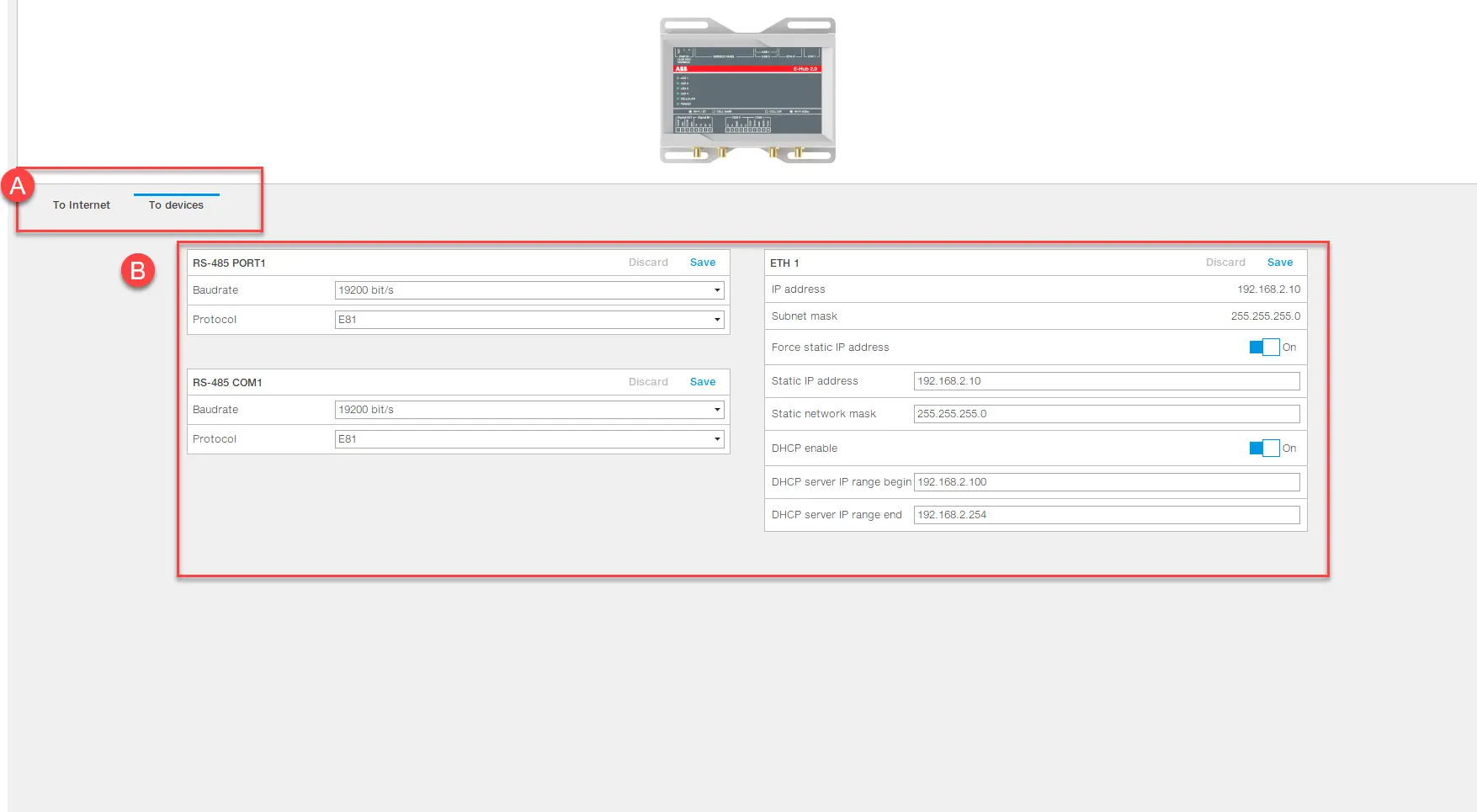

Page To devices

Part |
Function |
A |
Connectivity pages menu |
B |
Configuration parameters:
Discard: cancels the changes.
Save: transfers the configuration to the device. |
Enable and configure an Internet communication type
- In the To Internet tab, click on the button for the communication type to be enabled.
- Proceed as follows:
To communicate via...
|
Then... |
network |
- Set the communication parameters.
- To transfer the configuration to the device, click on Save.
|
Wi-Fi |
- Select the desired Wi-Fi network from the list.
- Enter the password and type of authentication.
- Click on Connect.
- Click on Back: the message Actual connection appears at the bottom of the button relating to the type of communication enabled.
|
Cellular (3G/4G) |
- Set the communication parameters.
- To transfer the configuration to the device, click on Save.
- To enable the connection, click on Connect.
- Click on Back: the message Actual connection appears at the bottom of the button relating to the type of communication enabled.
|
Disable an Internet communication type
- In the To Internet tab, position the cursor on the button relating to the type of communication to be disabled: the Disable button appears at the top right of the button.
- Click on Disable.
Enable and configure communication with devices
- Click on To devices.
- Set the communication parameters.
- To transfer the configuration to the device, click on Save.
