Dashboard
Page functions
- Display the summary or most critical information for the device
- Access pages with more detailed information.
Note: for the Insite Pro M device, the dashboard page allows direct access to the integrated web server of the device.

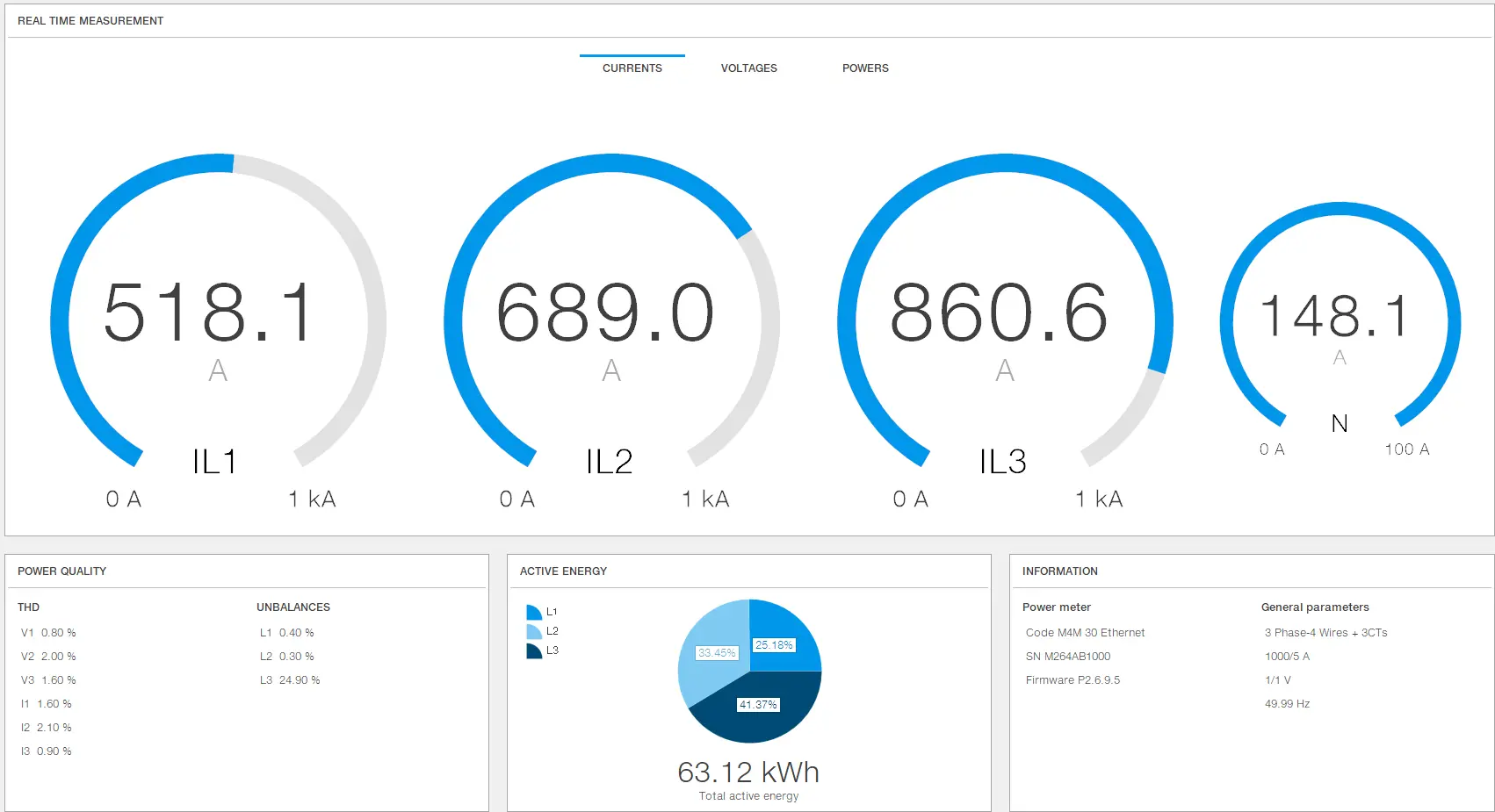

What it looks like
Area Real-time measurement
| Part | Description |
|---|---|
| A | Measurements menu |

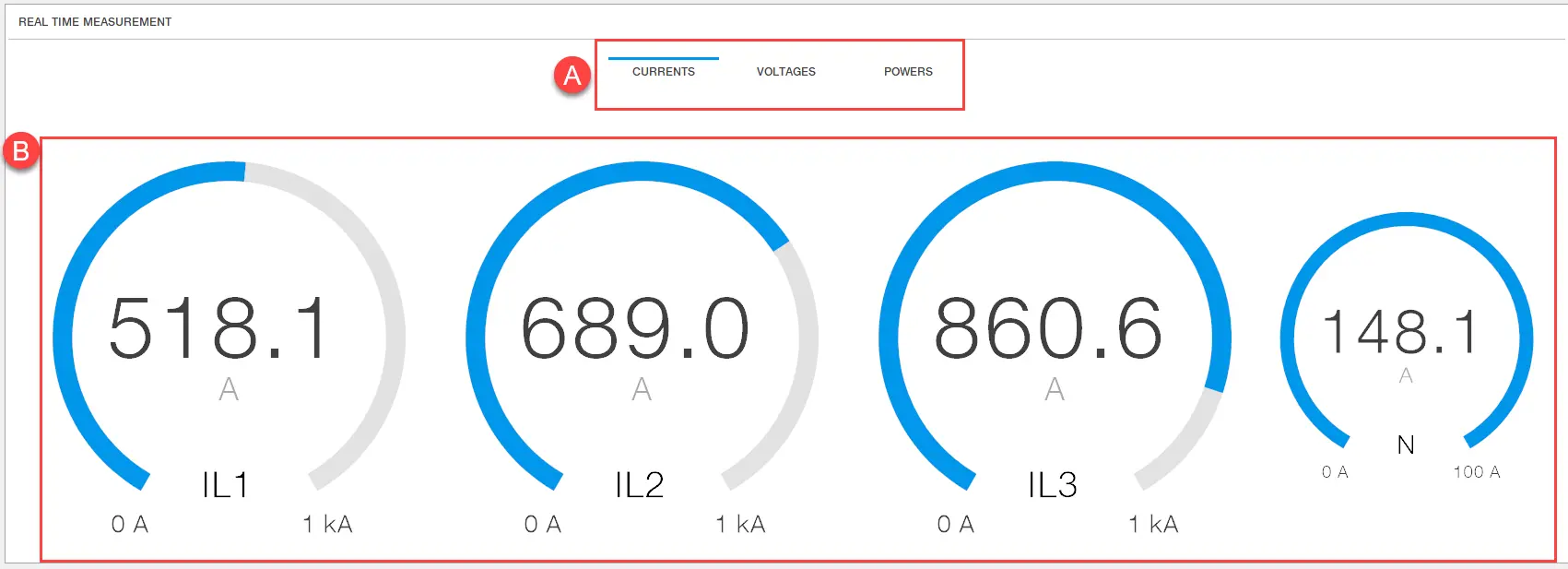

| B | Current measurement display area Real-time current measurements for each phase and the neutral. |
|
C
|
Voltage measurements menu:
|
|
D
|
Area for displaying voltage measurements selected in [C]. Real-time voltage measurements for each phase. |
|
E
|

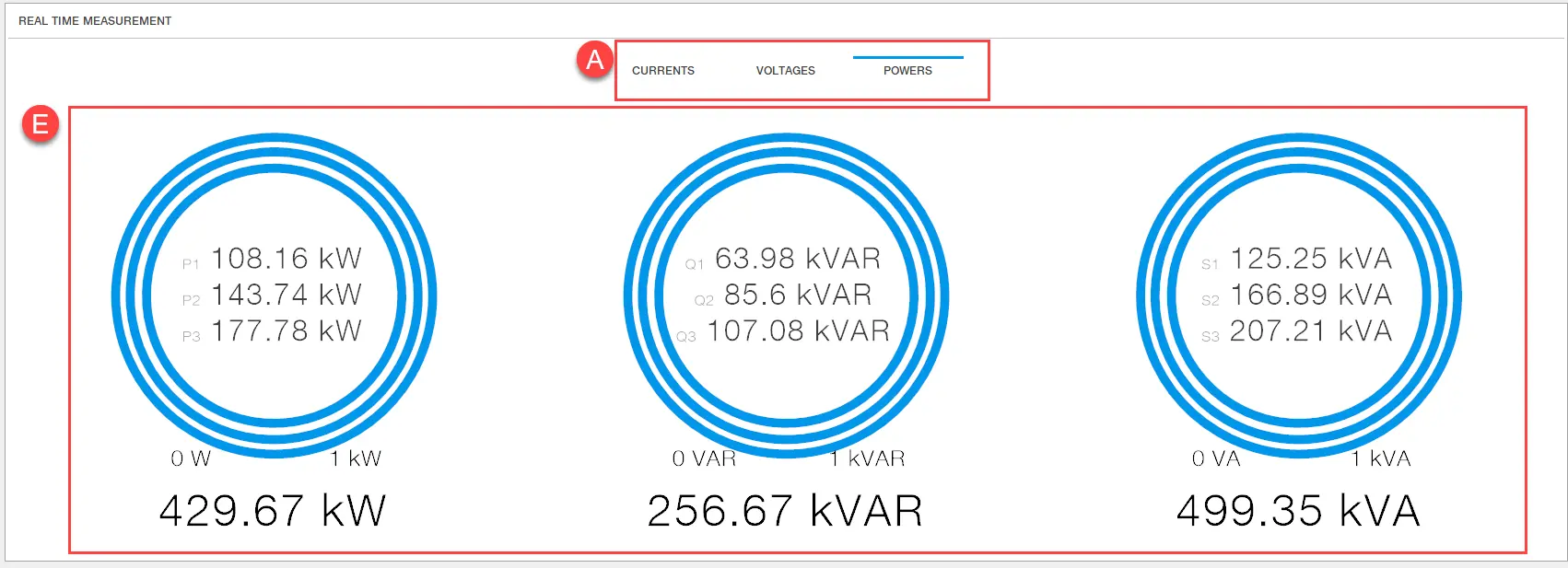

Power measurements display area
|
Area Power quality
This area shows the THD values and the unbalance of the loads.
Area Active energy
This area shows per-phase and total active power values.
This area shows per-phase and total active power values.
Area Information

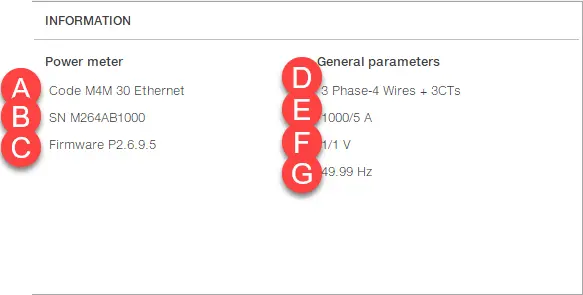

| Part | Description |
|---|---|
| A | Device model |
| B | Device serial number |
| C | Device firmware version |
| D | Network configuration type |
| E | Current transformation ratio |
| F | Voltage transformation ratio |
| G | Frequency |
