Protections

Page functions

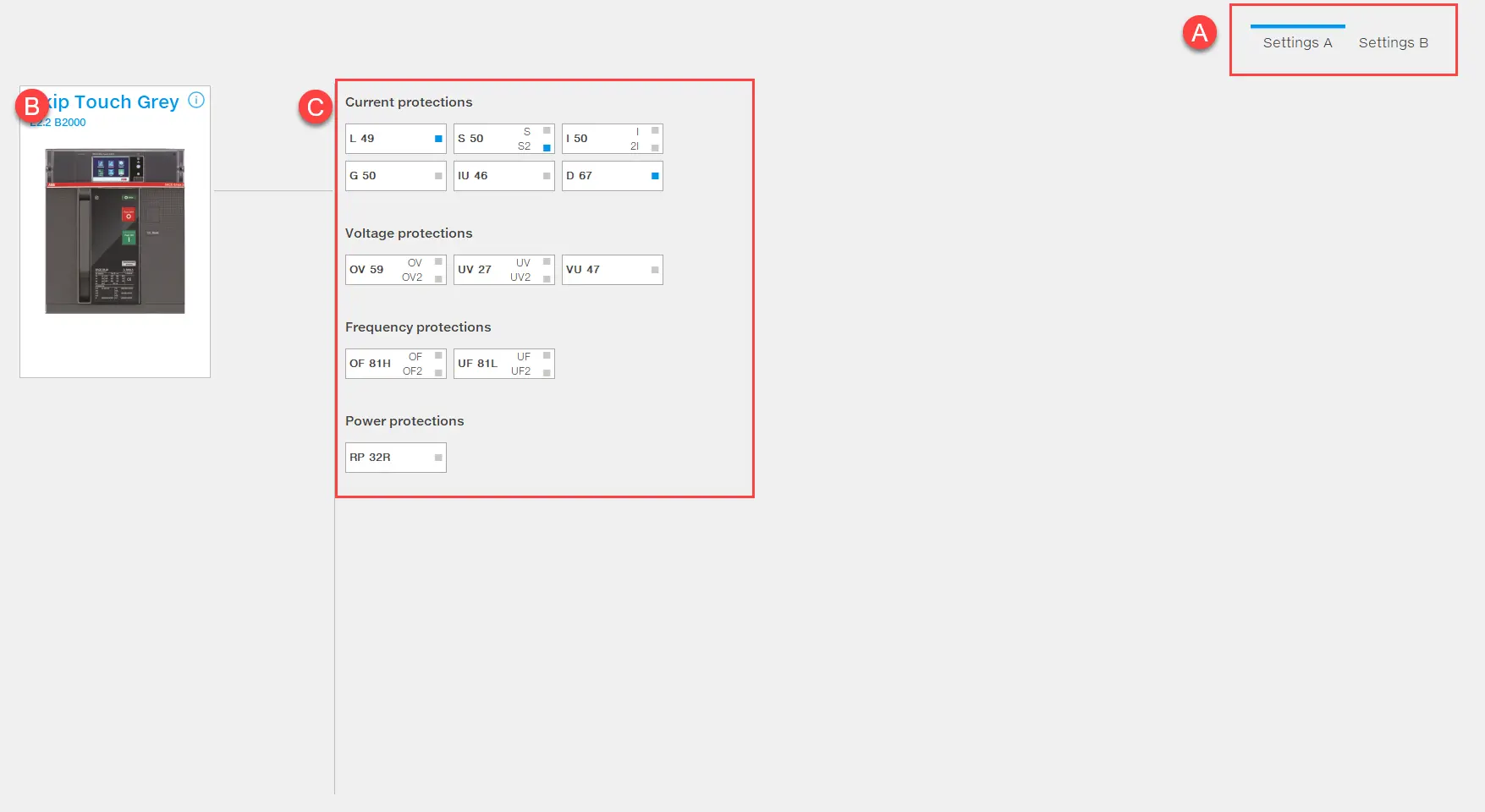

Part	Description
A	Menu to select the set of protections to be configured Settings A Settings B
B	Trade-name of device Customised device name (parameter CB Tag name editable in Classic view > Unit configuration > Customisable information) Photo of the device : if available, opens a document with a sales presentation of the device.
C	List of available device protections. The following data are shown for each protection: protection name protection status : active : inactive

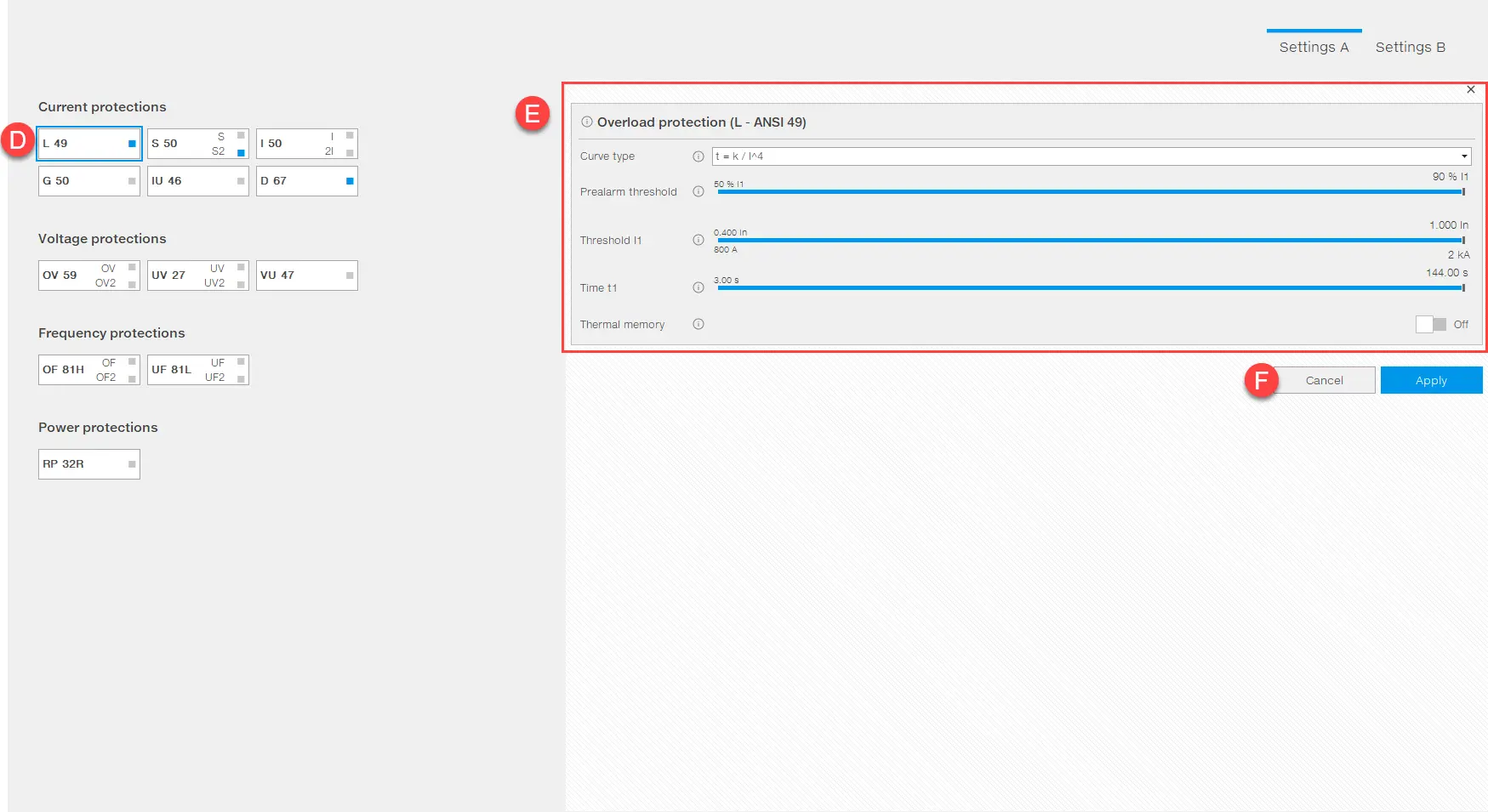

D	Protection selected for the configuration
E	Configuration parameters for the selected protection
F	Button to apply or cancel changes

To configure a protection of set B, click on Settings B.
Click on the protection to be configured: the area containing the protection parameters appears.
Enter the parameters.
To transfer the configuration to the device, click on Apply: a message appears with the result of the operation.

Note: if the operation fails, check the status of the operating mode (Operating mode).
