Monitoring

Monitoring page functions

View the measured data
Display recorded events, alarms and trips of the protections.

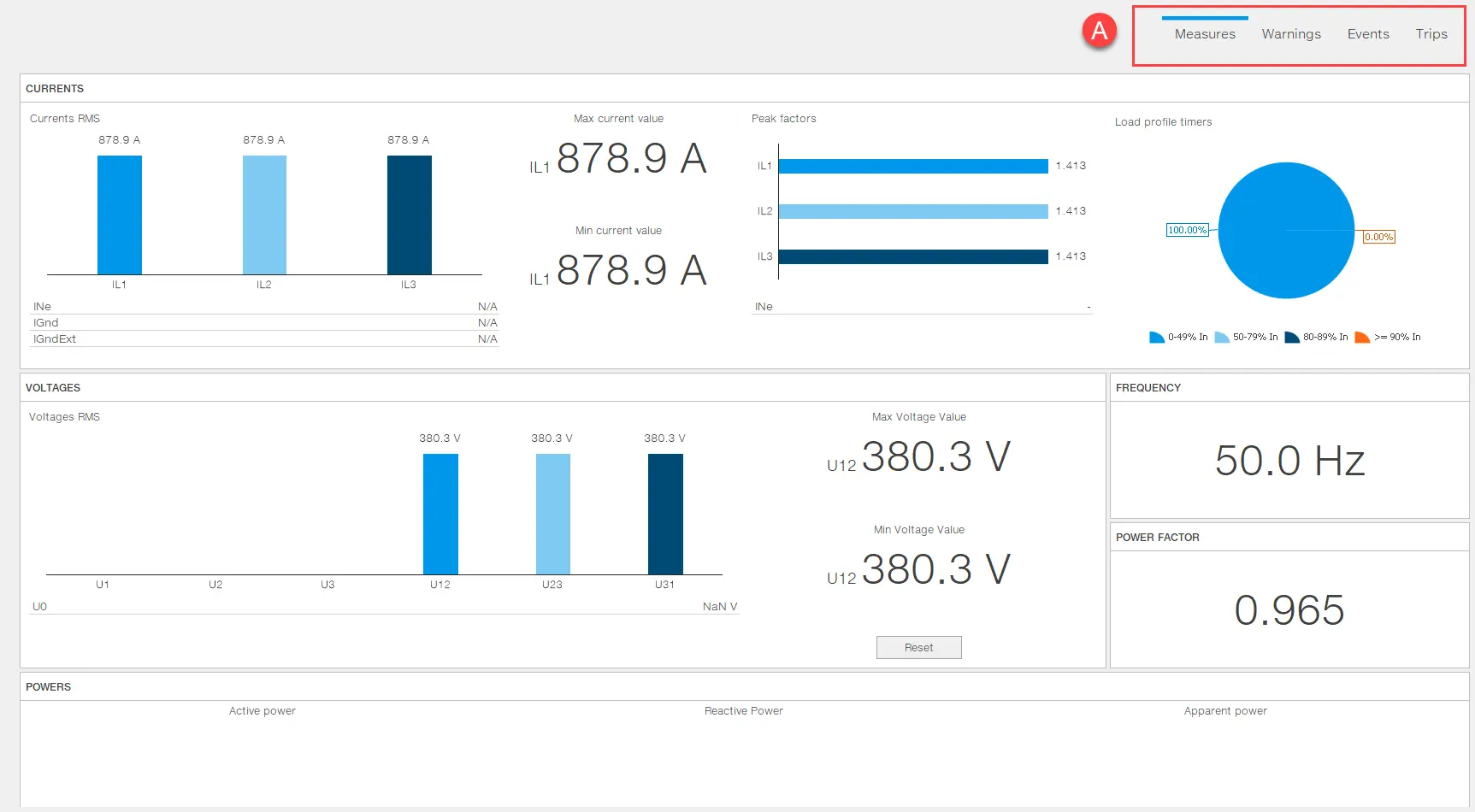

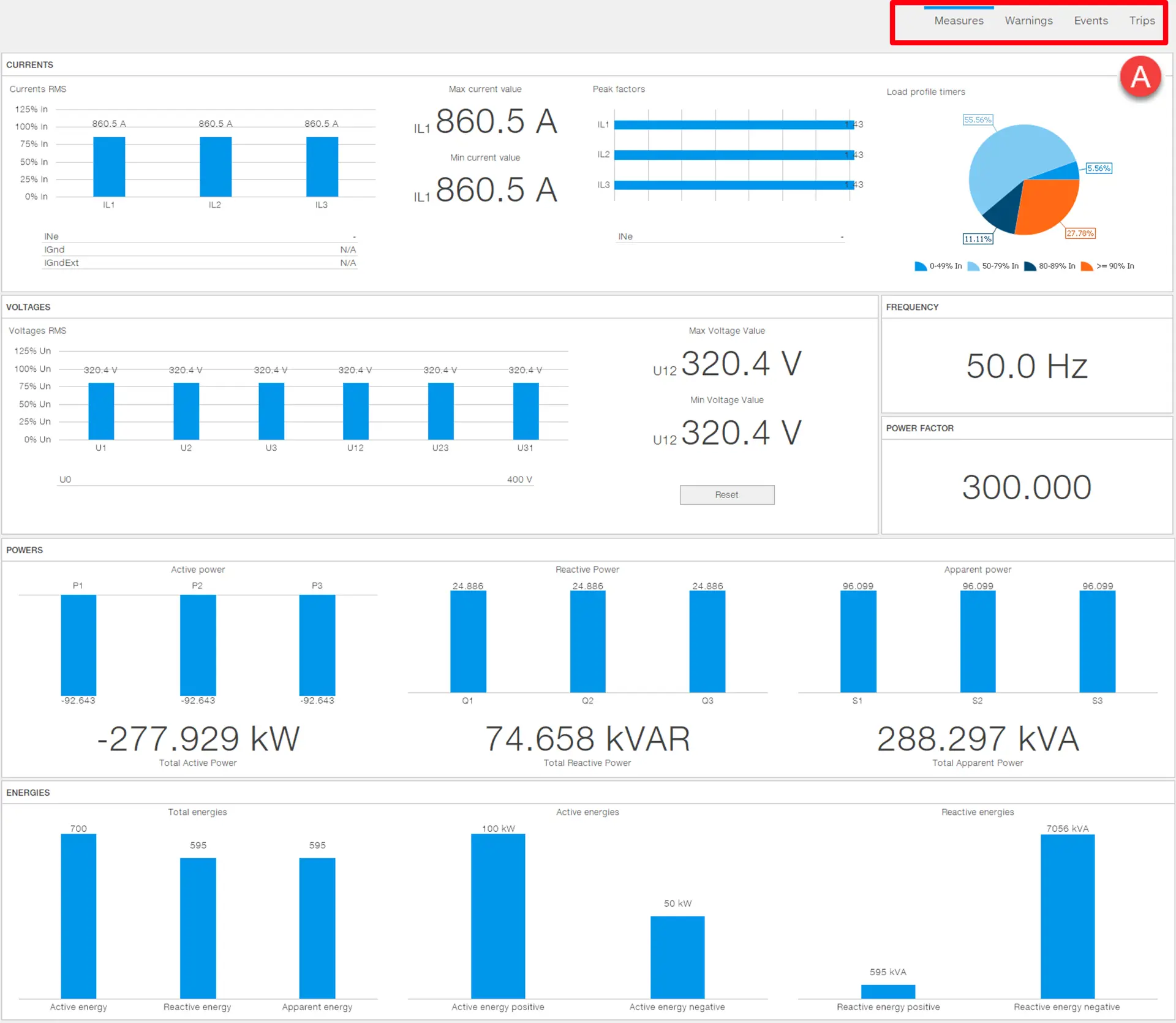

Page Measurements

measurement page

Part	Description
A	Monitoring pages menu
Currents	Current measurement display area Current RMS: measurements acquired: Current of each phase Ine: neutral current IGnd: internal earth fault current IGndEx1: external earth fault current Max. current value: maximum phase current measured. Value calculated since power was supplied to the device or since the last manual reset. Min. current value: minimum phase current measured. Value calculated since power was supplied to the device or since the last manual reset. peak factors of each phase and neutral graph of load profiles
Voltages	Voltage measurements display area Voltages RMS: measurements acquired: voltage of each phase (single and line-to-line) U0: neutral voltage Max. voltage value: maximum phase voltage measured. Value calculated since power was supplied to the device or since the last manual reset. Min. voltage value: minimum phase voltage measured. Value calculated since power was supplied to the device or since the last manual reset. Reset: button to reset minimum and maximum values
Frequency	Frequency measurement
Power factor	Power factor measurement
Power	Power measurements display area phase and total active power phase and total reactive power phase and total apparent power
Energies

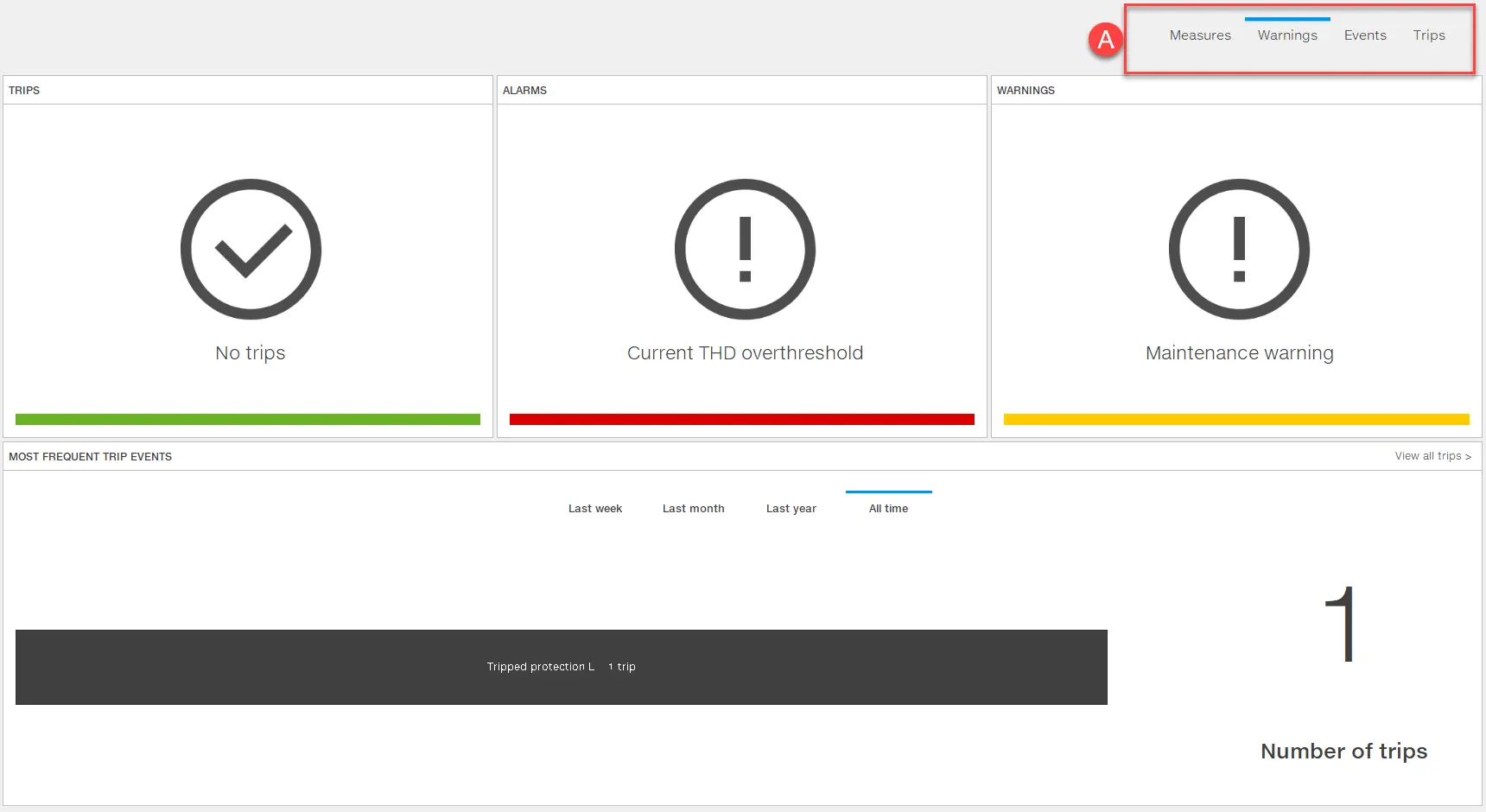

Page Alerts

alert signal

Part	Description
A	Monitoring pages menu
Interventions	Display of the last five recorded trips in a continuous sequence
Alarms	Display of the last five recorded alarms in a continuous sequence
Alerts	Display of the last five recorded warnings in a continuous sequence
Most frequent trip events	Display of trips by type of protection that caused the trip during a given period (last week, last month, last year, all) Number of trips: total trips in the selected period Shows all trips: link to page Trip (Page Interventions)

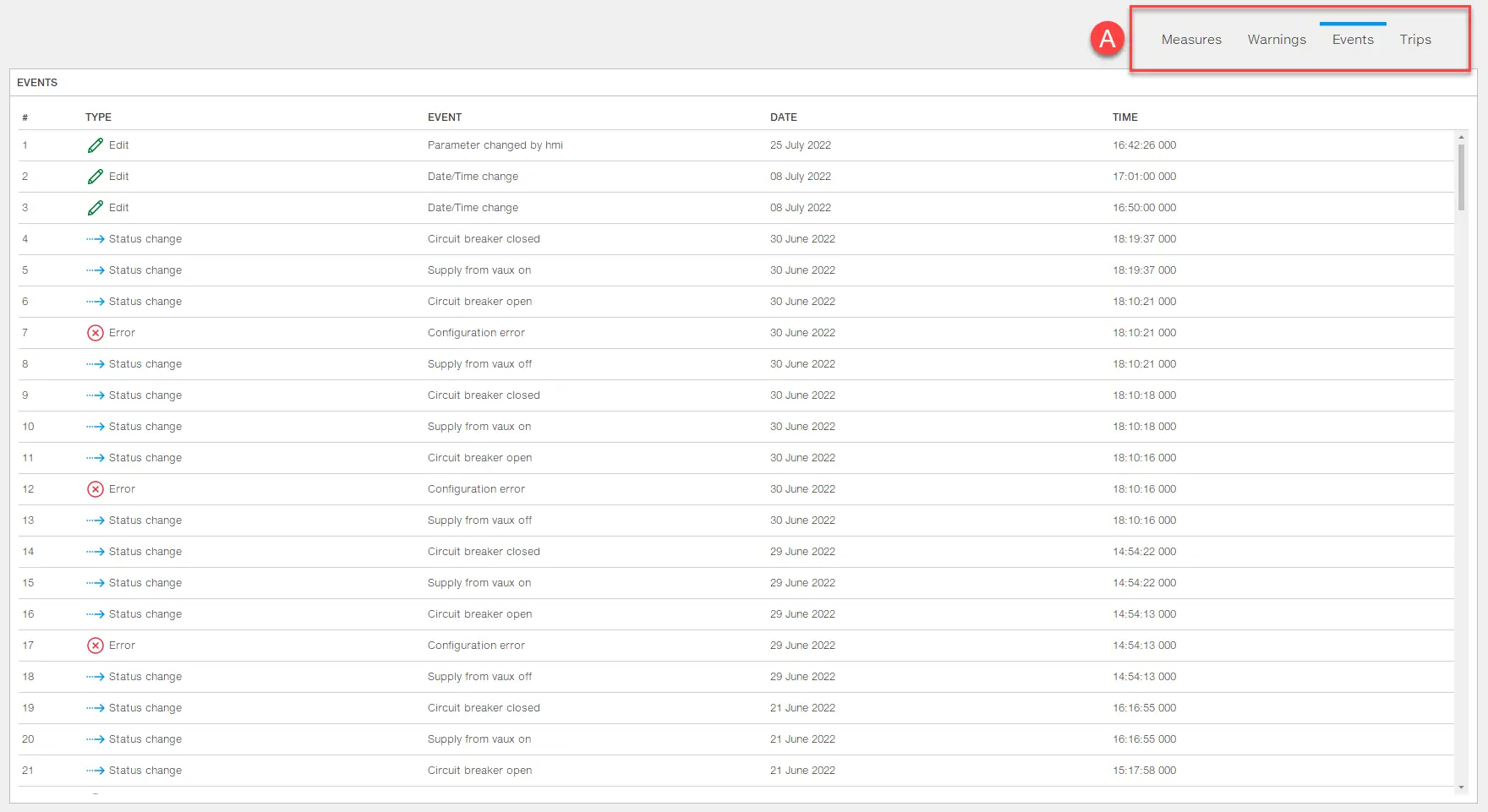

Page Events

events page

Part	Description
A	Monitoring pages menu
Events	List of all recorded events, including alarms and trips. The following information is shown for each event: type name recording date and time duration

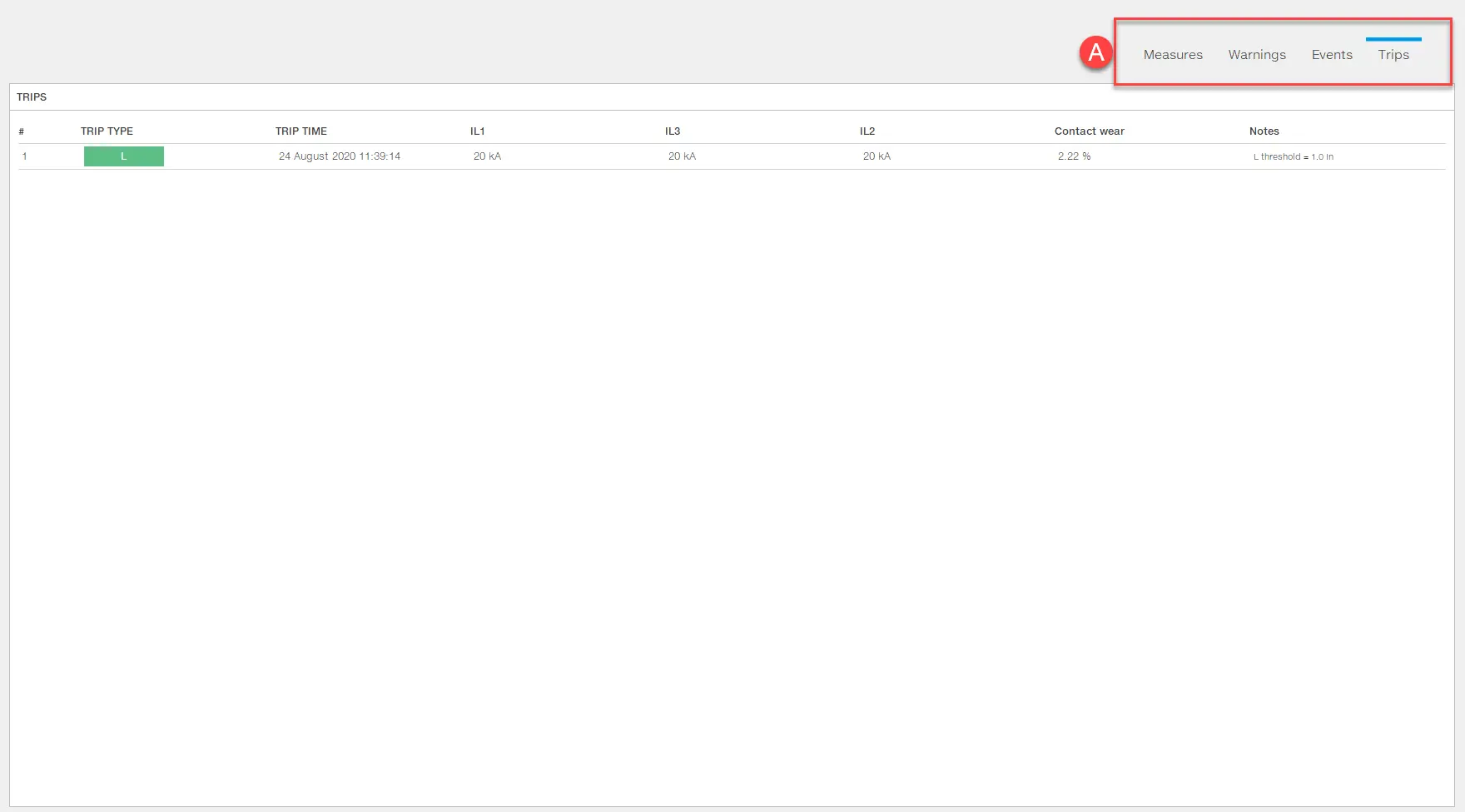

Page Interventions

intervention page

Part	Description
A	Monitoring pages menu
Content	Interventions List of trips recorded The following information is provided for each trip: the protection that caused the trip date and time of the trip the measurements associated with the tripped protection state of wear of the contacts (0% = no wear, 100% = completely worn)
