Modules

Page functions

Configure additional modules of the device.

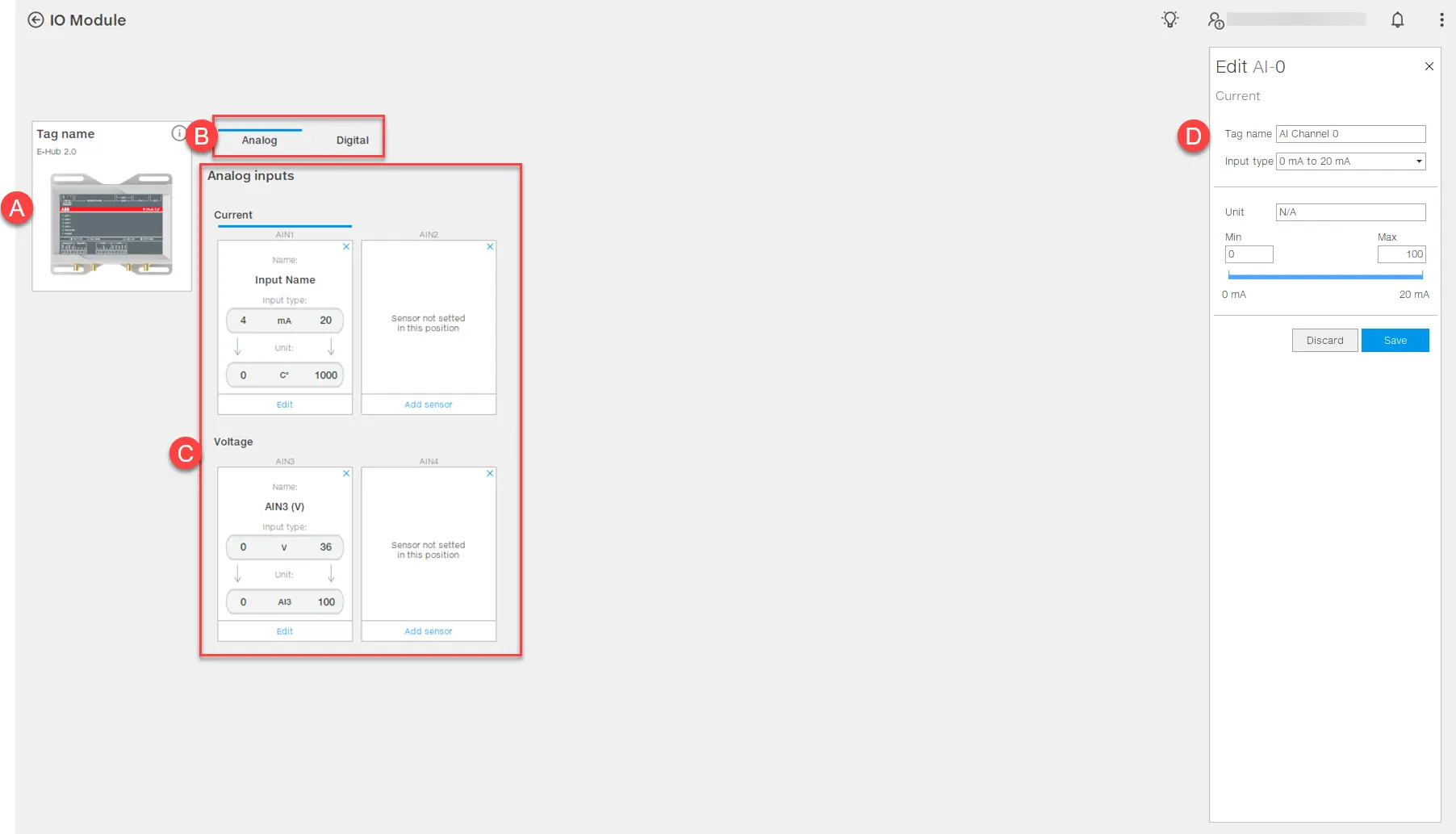

What it looks like (IO module)

IO Module

Part	Description
A	Image and device information
B	Pages menu: Analog: page for configuring analog inputs Digital: page for configuring digital inputs
C	Inputs area. The following data are shown for each input: Customisable name Input type Sensor data that have been set (minimum and maximum value and unit of measurement). : Removes the sensor from the input. Modification: changes the input and sensor parameters. Add sensor: displays area [D] to configure the input and the associated sensor.
D	Parameters area. The following are the most significant parameters: Unit: sensor measurement unit Pulse amplitude: increment value

Associate a sensor with an input

Select Analog or Digital: the relevant input configuration page opens.
Click on Add sensor: the input is populated with default values.
Click on Modification and in the editing area, set the parameters.
To save the changes, click on Save: a message appears with the result of the operation. Or to cancel, click on Discard.
