Load Shedding: procedure
Configure the function Load Shedding
- Click on Tools > Load Shedding.

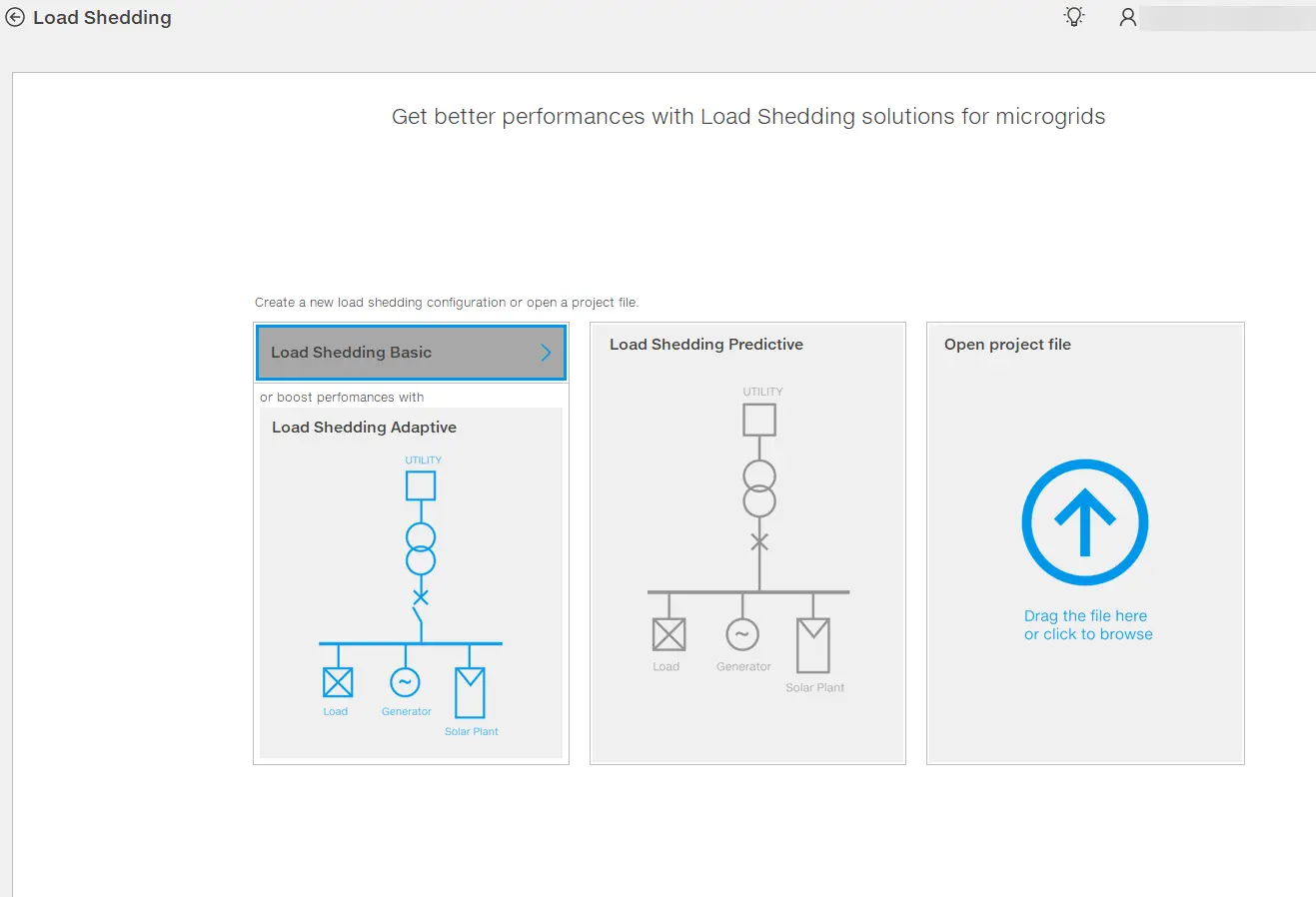

- To start a new project, select the chosen version of Load Shedding or select the button to read the configuration Load Shedding active on the device.

- Enable the Load Shedding function and click on Configure to configure the function parameters.
- If there is a solar system and/or ATS, click on Configure corresponding to the element in order to configure the necessary parameters.
- Add as many loads as there are loads in the system to be monitored.
- Set the parameters for each load (Load Shedding: parameters).
- To save the project, click on Save project.
- To transfer the configuration to the device, check that the device is connected and communicating with Ekip Connect and click on Transfer: at the end of the transfer, a .pdf file containing the configuration report can be downloaded.
Note: to transfer the configuration to the device, you must have activated the purchased package on Marketplace.
Monitor the function
- With the device connected and communicating with Ekip Connect, click on Tools > Load Shedding.
- Open a project or select the button to read the configuration Load Shedding active on the device.
- Click on Supervision.
