Dashboard

Page functions

Display the summary or most critical information for the device
Access pages with more detailed information.

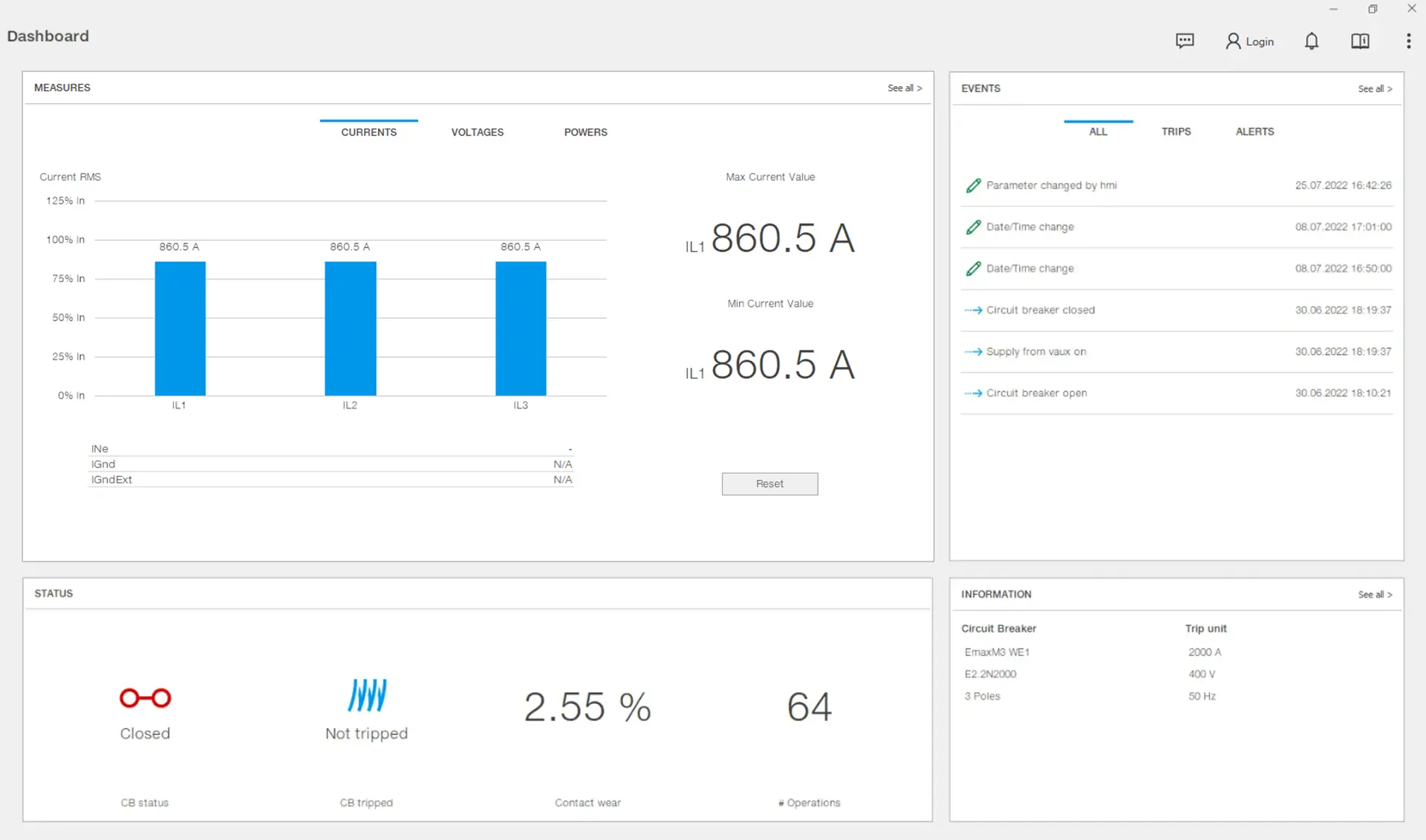

What it looks like

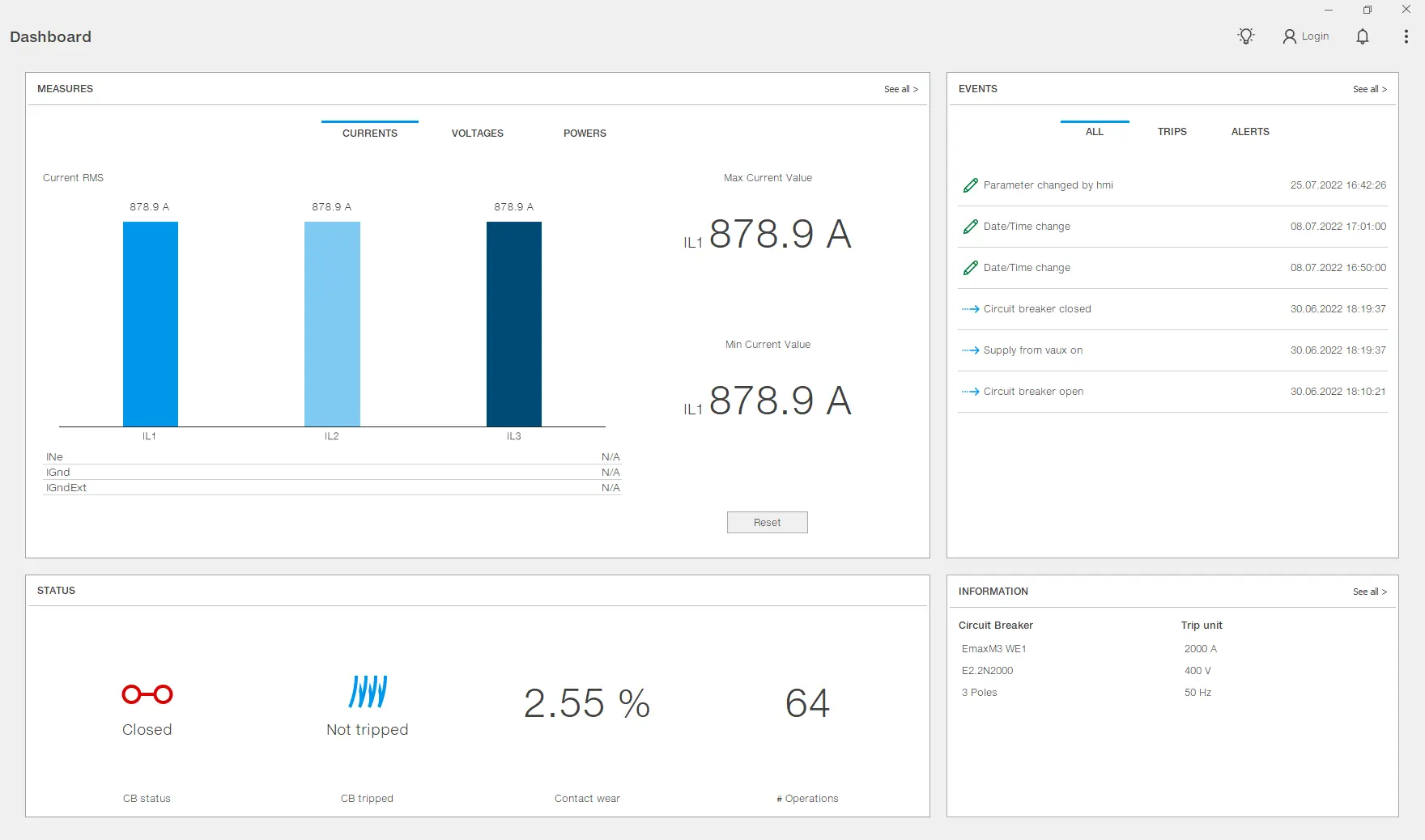

dashboard

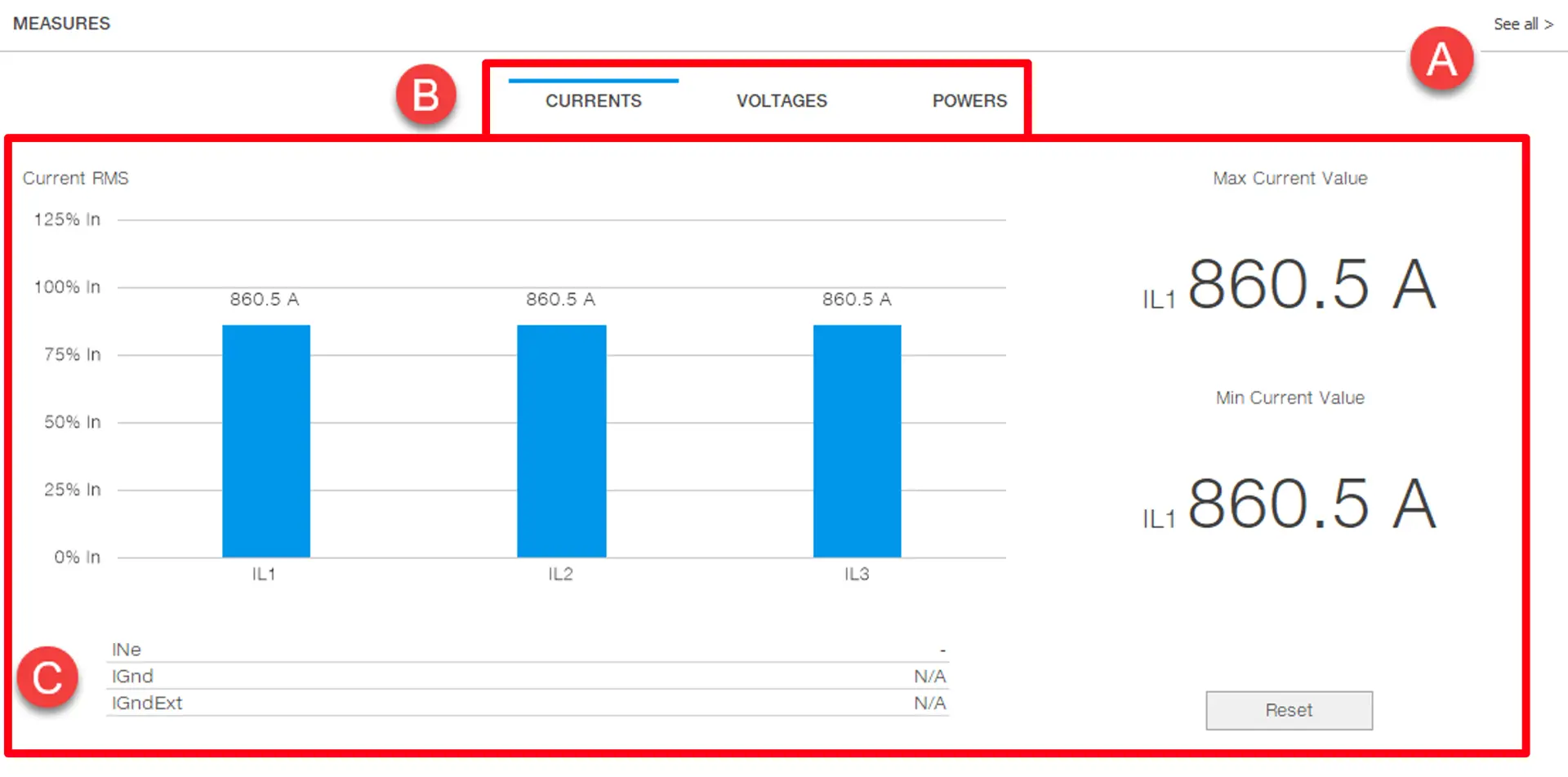

Area Measurements

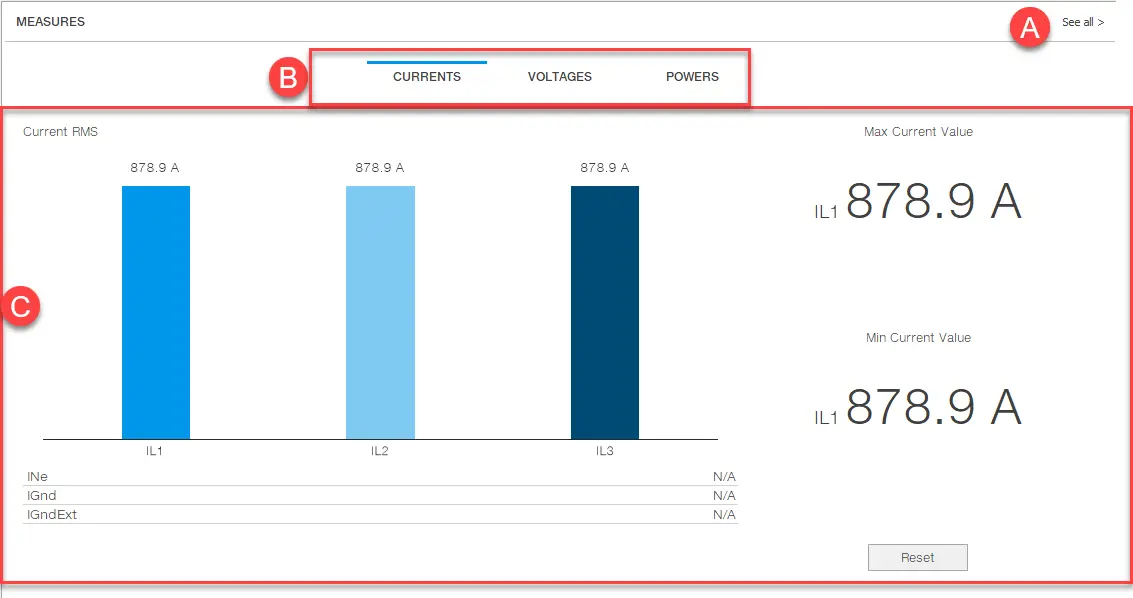

measurement

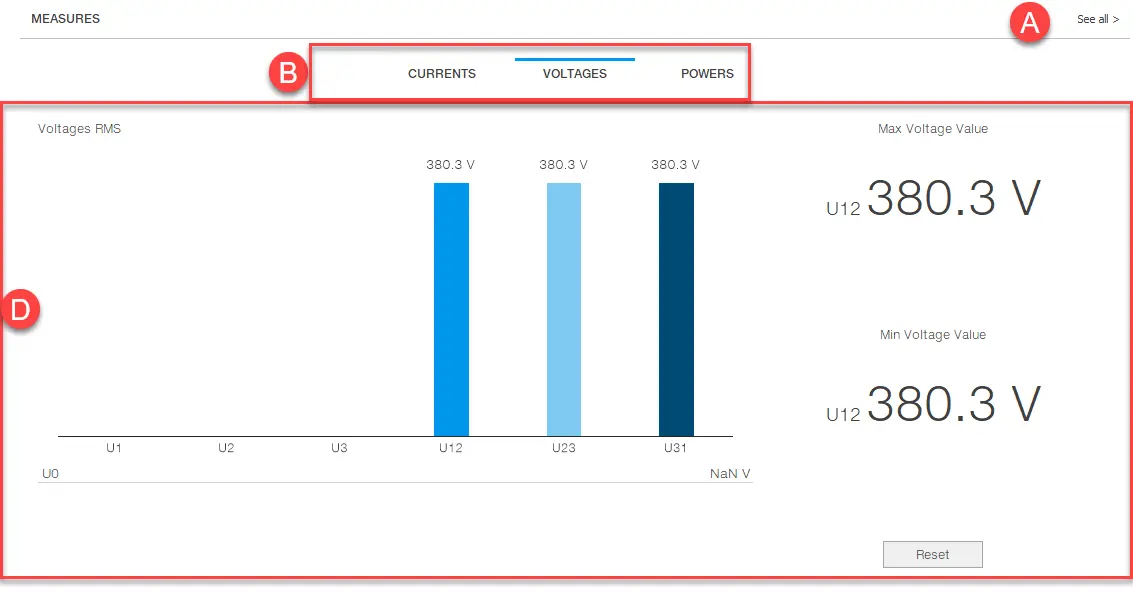

voltage measurement

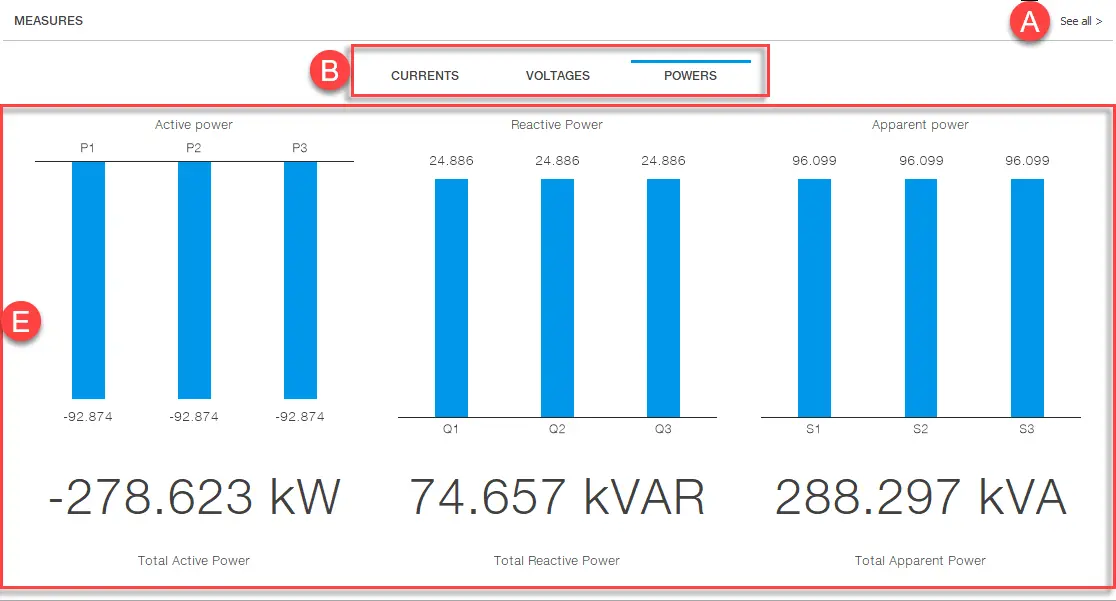

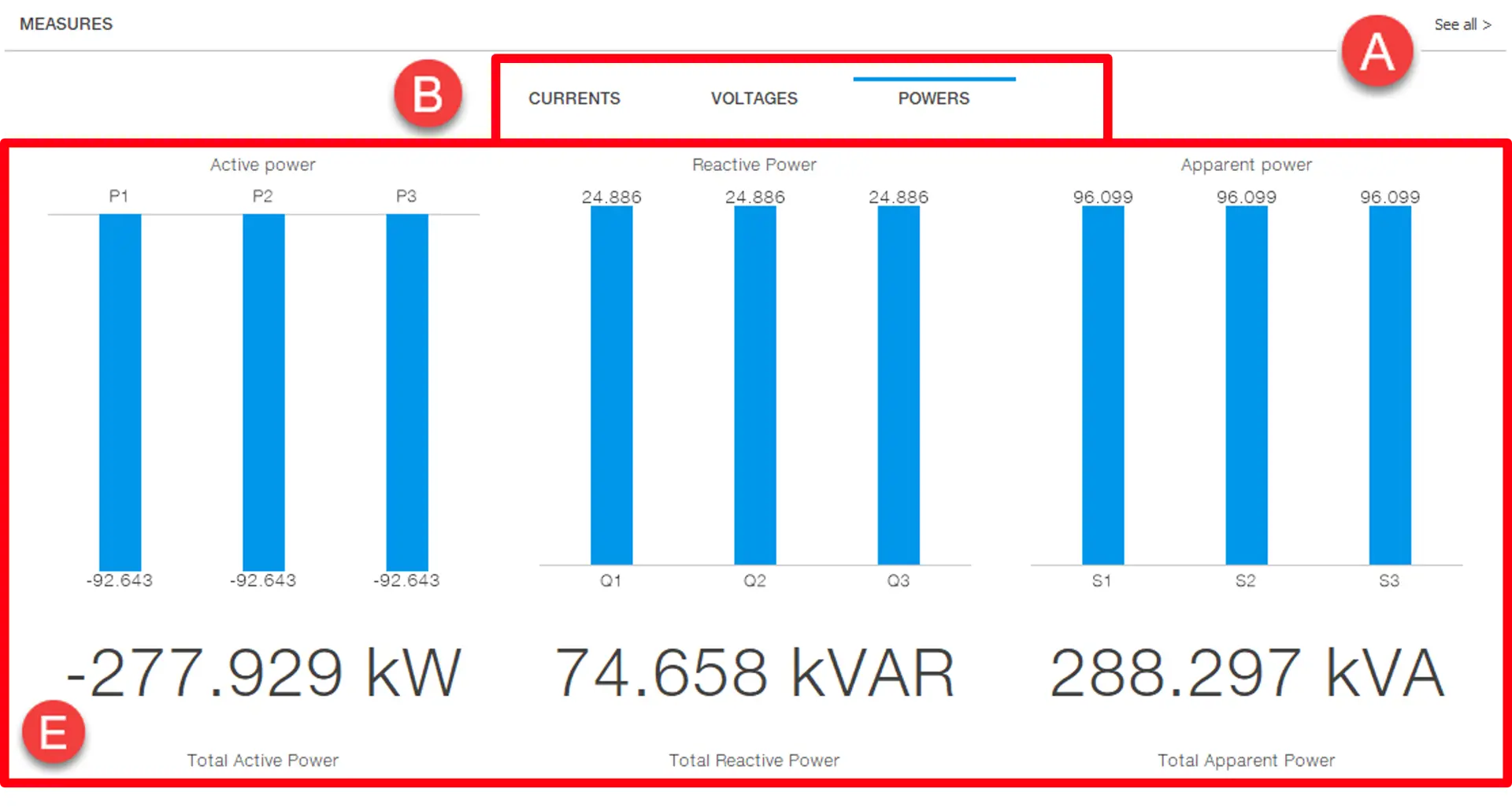

powers measurement

Part	Description
A	Button to access the Measurements section of page Monitoring
B	Measurements menu
C	Current measurement display area Current RMS: measurements acquired: Current of each phase Ine: neutral current IGnd: internal earth fault current IGndEx1: external earth fault current Max. current value: maximum phase current measured. Value calculated since power was supplied to the device or since the last manual reset. Min. current value: minimum phase current measured. Value calculated since power was supplied to the device or since the last manual reset. Reset: button to reset minimum and maximum values

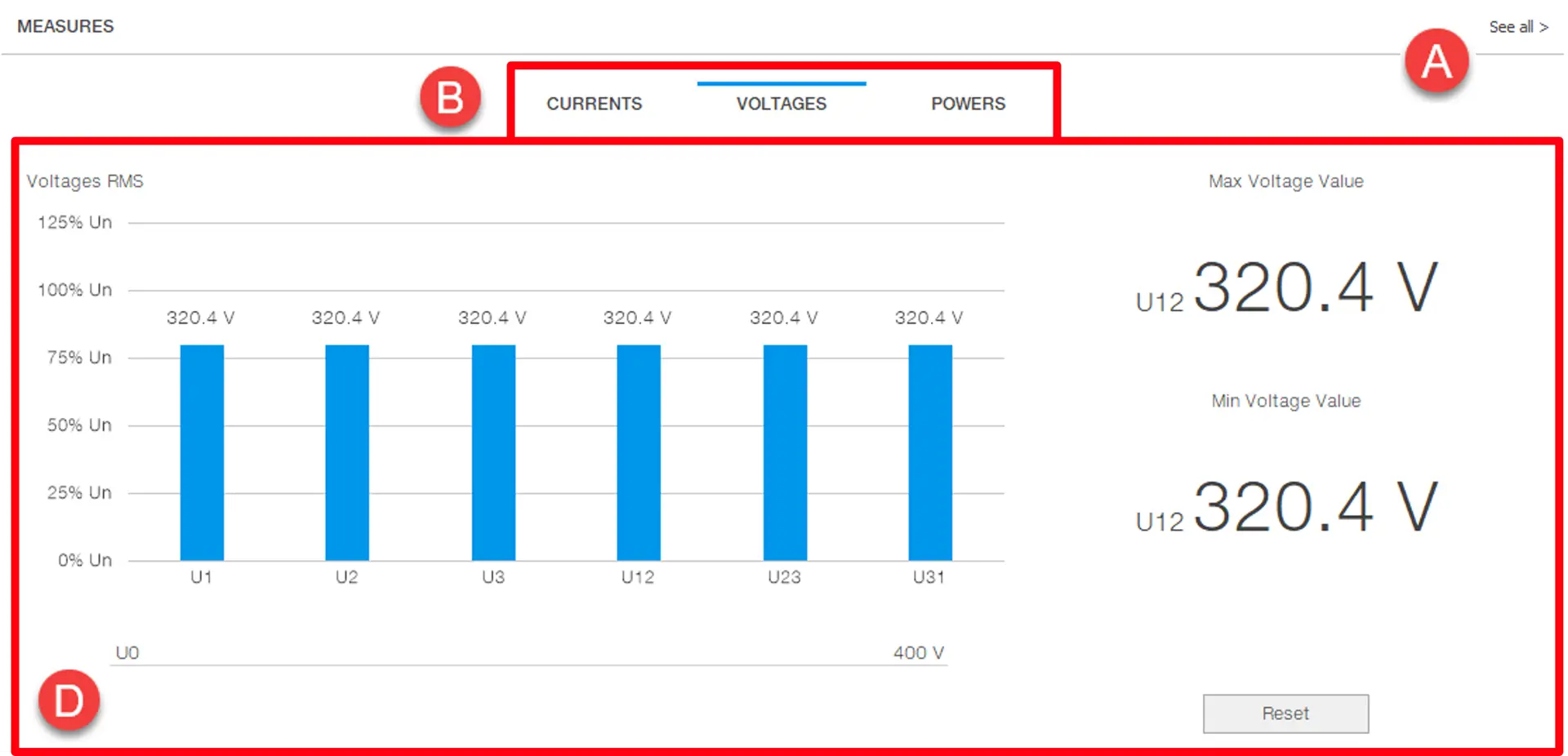

D	Voltage measurements display area Voltages RMS: measurements acquired: voltage of each phase (single and line-to-line) U0: neutral voltage Max. voltage value: maximum phase voltage measured. Value calculated since power was supplied to the device or since the last manual reset. Min. voltage value: minimum phase voltage measured. Value calculated since power was supplied to the device or since the last manual reset. Reset: button to reset minimum and maximum values
E	Power measurements display area: phase and total active power phase and total reactive power phase and total apparent power

Area Events

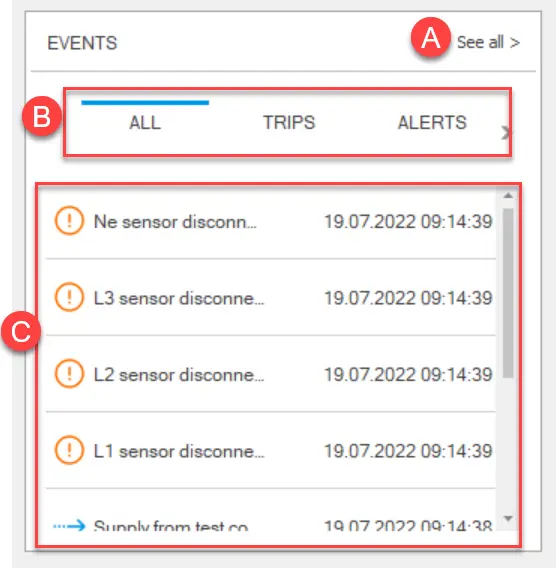

Events area

Part	Description
A	Button to access the Events section of page Monitoring.
B	Events menu: All: displays the last six events recorded, excluding trips and alarms Interventions: displays the last six trips recorded. Alarms : displays the last six alarms recorded.
C	Area that displays the events selected in [B]: : status change /: warning : error : information : change

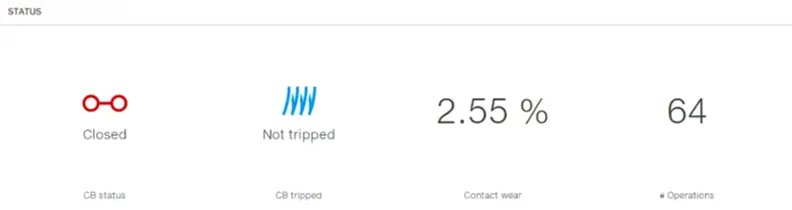

Part	Description
Circuit-breaker state	: closed : open : undefined
Circuit-breaker trip	: tripped : not tripped
Contact wear	0% = no wear 100% = completely worn
# Operations	Total number of manual operations, interventions, failed interventions and test interventions.

Area Information

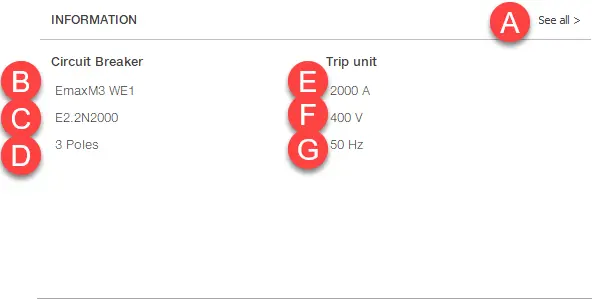

information area

Part	Description
A	Button to access the Information page
B	Customised device name (parameter CB Tag name editable in Classic view > Unit configuration > Customisable information)
C	Device type (parameter CB Type also visible in Classic view > Information > General parameters)
D	Number of poles
E	Rated current (In)
F	Rated voltage (Un)
G	Frequency

Reset the minimum and maximum recorded values

Note: function only available if the device is connected to Ekip Connect via a point-to-point connection.

In Measurements, click on the measurement type (Currents or Voltages) for which you want to reset the minimum and maximum values.
Click on Reset.
